Custom Tipper Body Solutions

Heavy-duty, precision-engineered tipper bodies designed for superior strength, durability, efficient material handling, and reliable performance.

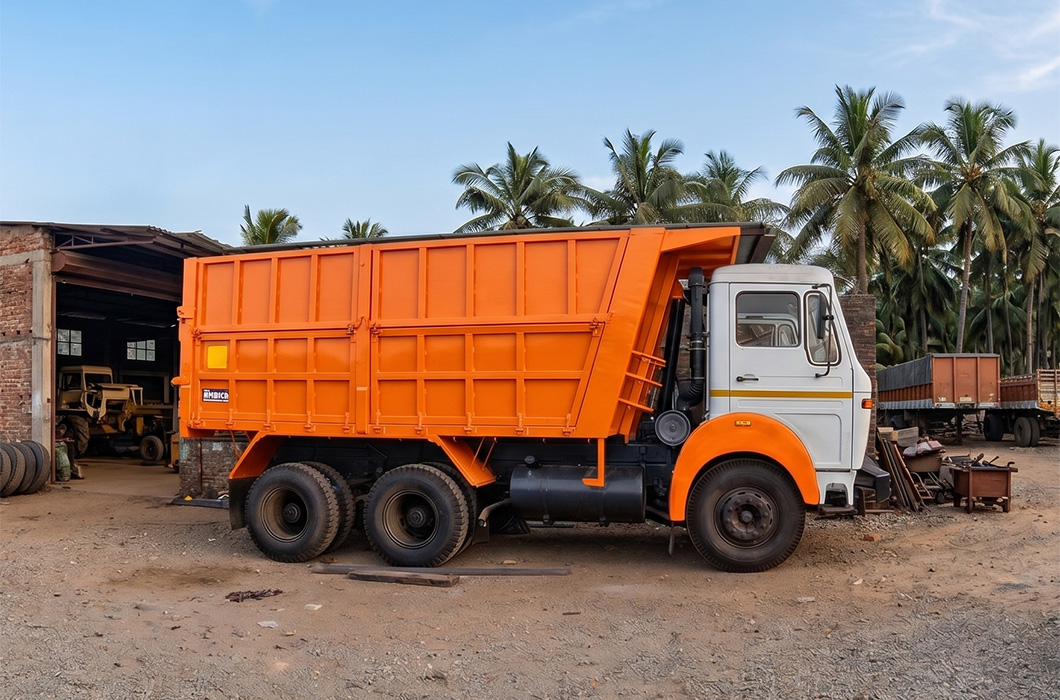

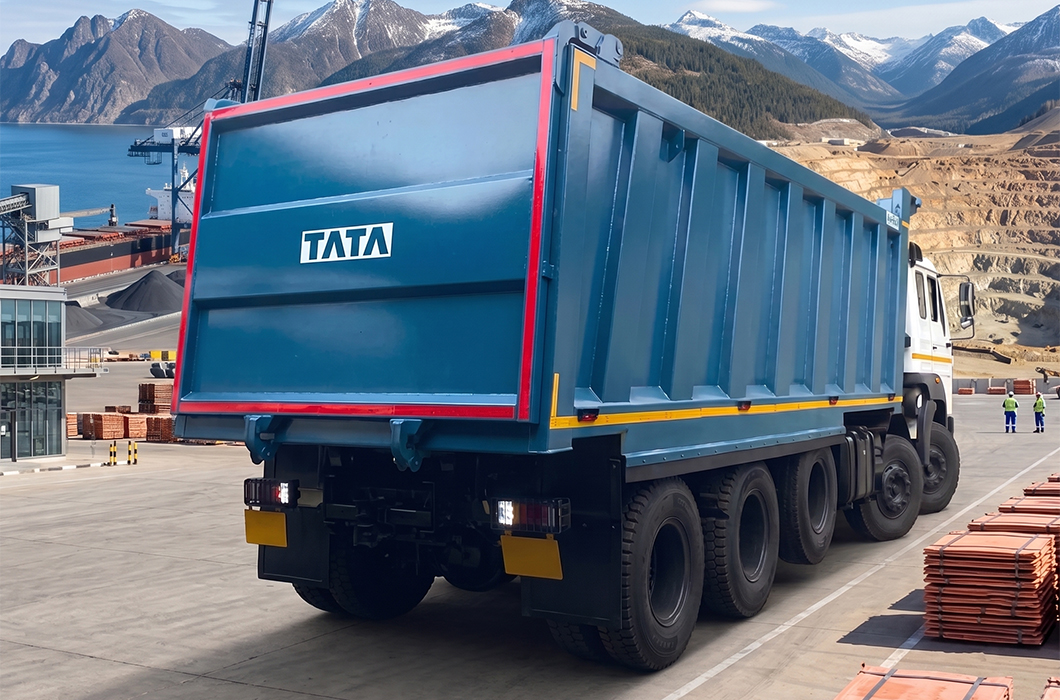

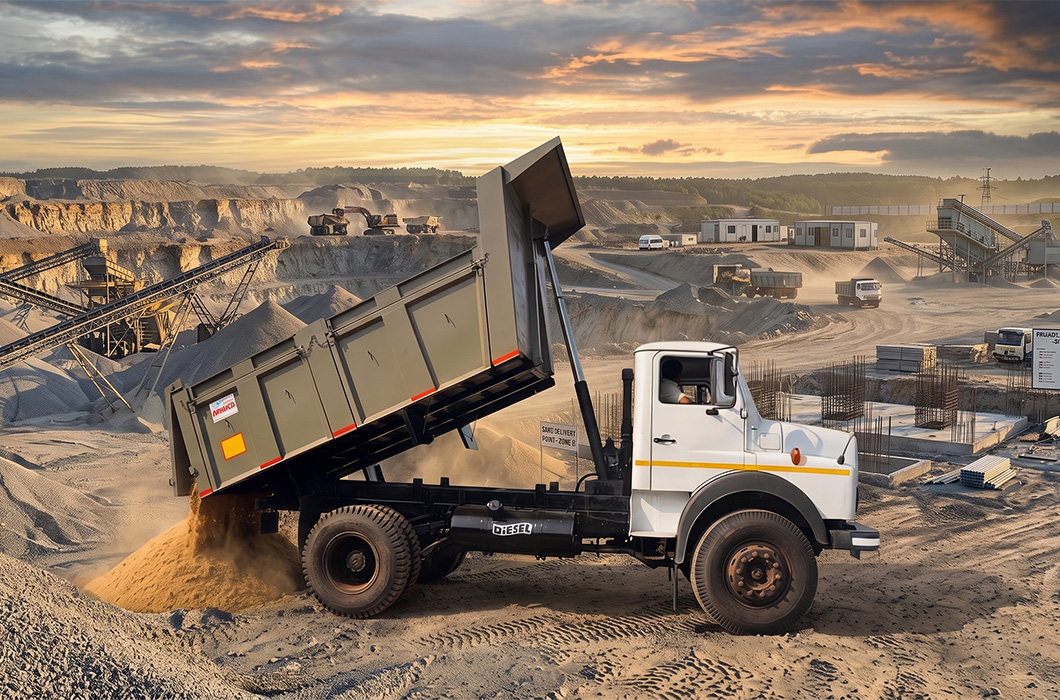

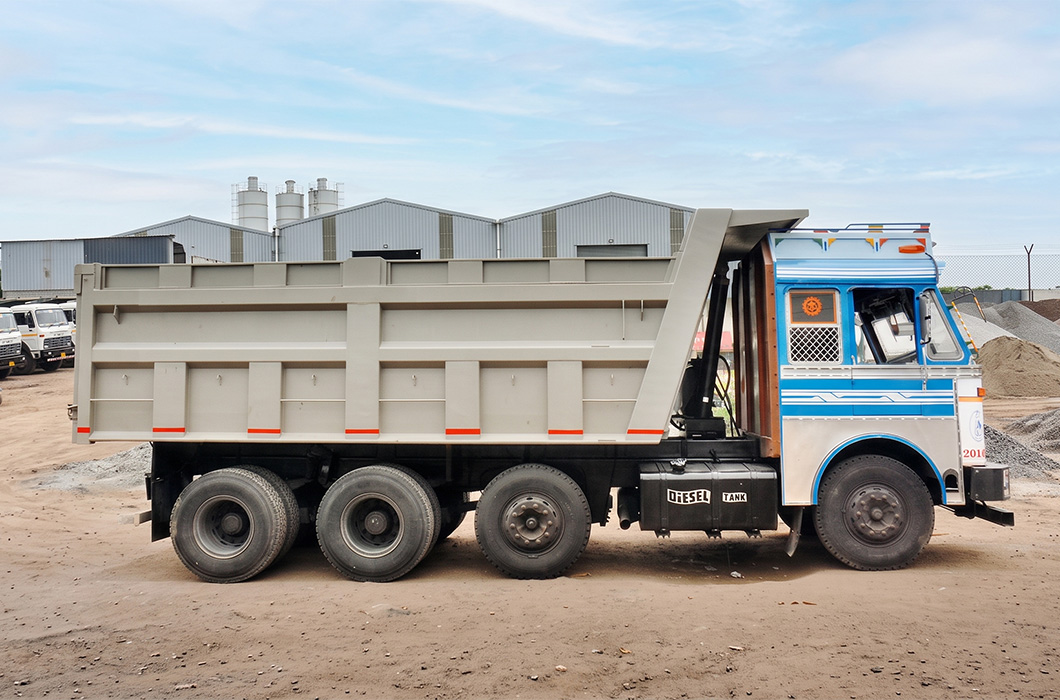

Tata Tipper Body Solution

Tata 4832 Front Body

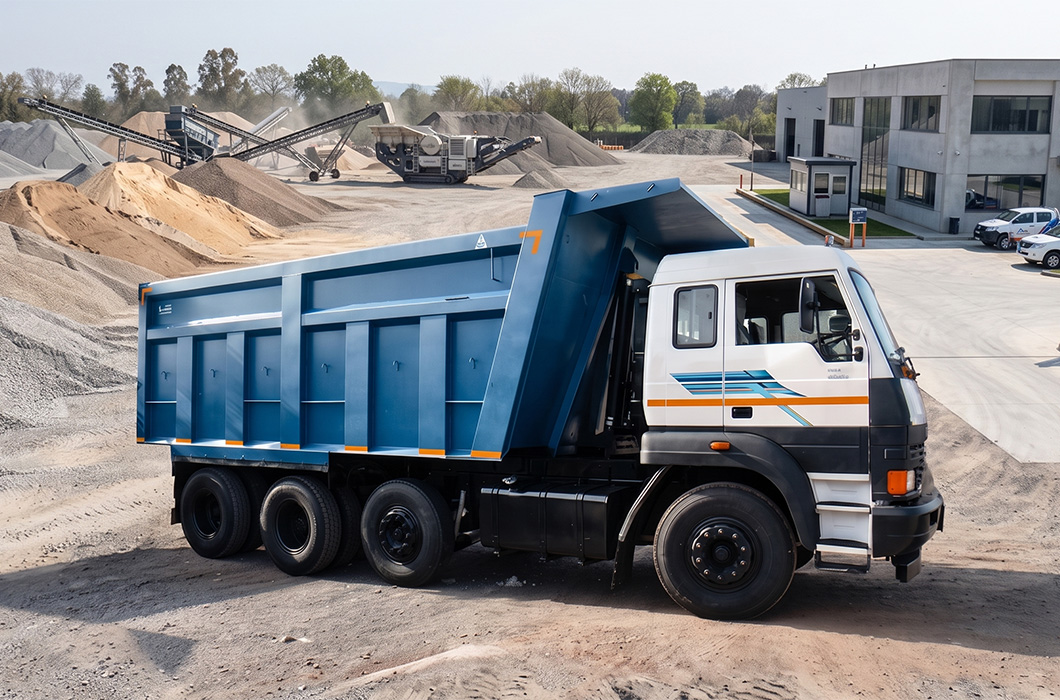

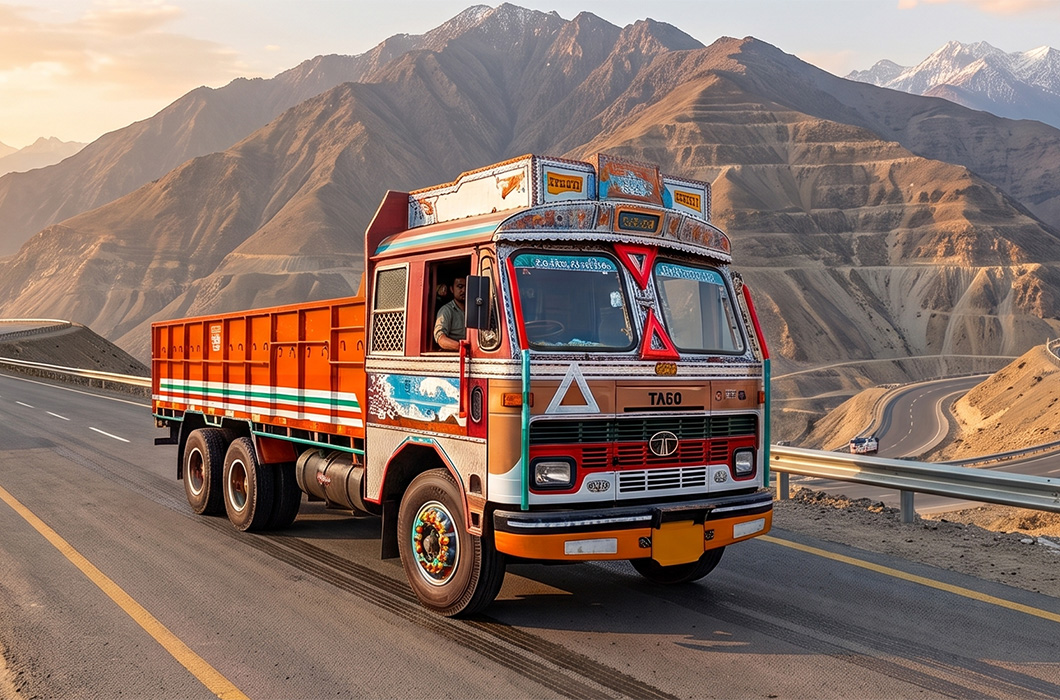

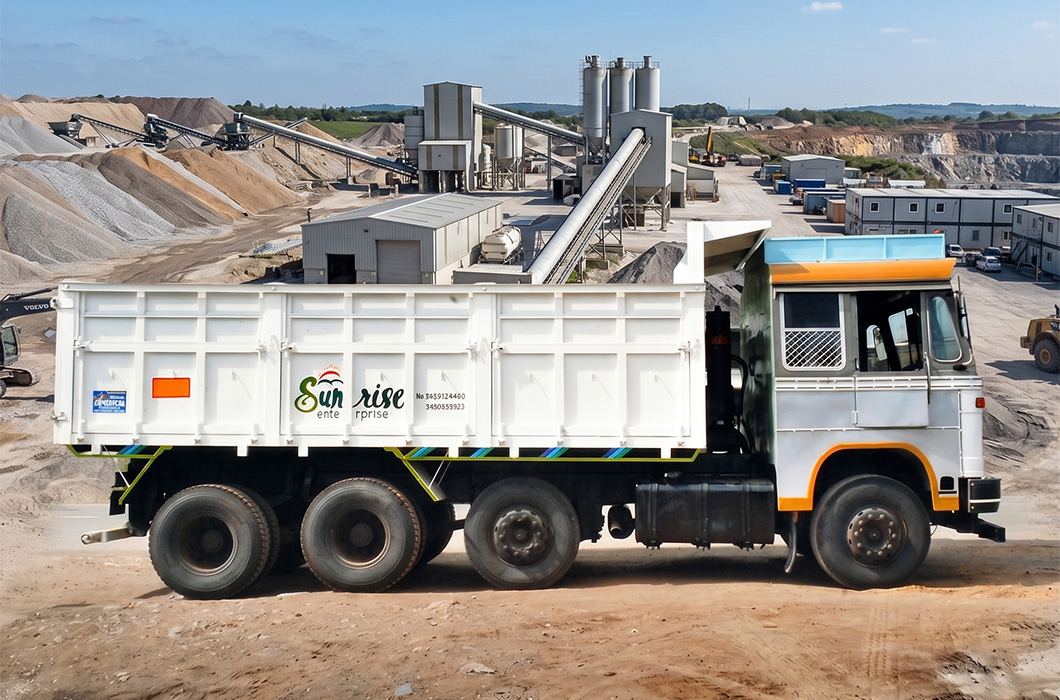

Tata Tipper Body Solution

Tata 1616 Drop Side Body

Tata Tipper Body Solution

Tata 3118 Front End Body

Tata Tipper Body Solution

Tata 2516 Front End Body

Tata Tipper Body Solution

Tata 3118 FC Model Tipper

Tata Tipper Body Solution

Tata 3118 Front End

Tata Tipper Body Solution

Standard Load Body Tata 2515

Vehicle Model
Items Tata 4832 Front Body Tata 1616 Drop side body Tata 3118 Front End Body Tata 2516 Front End Body Tata 3118 FC Model Tipper Tata 3118 Front End Standard Load Body Tata 2515
Volumetric Capacity This model detail currently unavailable, we are develop this model as per your requirment. 3.25 Brass 25cm 18cm 20cm 20cm This model detail currently unavailable, we are develop this model as per your requirment.
Overall Dimension of Body - 4250 x 2250 x 1000 5520 x 2275 x 1890 4480 x 2230 x 2230 5700 x 2275 x 1500 5520 x 2275 x 1520 -
Tipping Angle - 90 Degree 90 Degree 90 Degree 90 Degree 110 Degree -
Carrying Material - Stone Stone Stone Stone Stone -
Side Panels - 3mm thick steel plate reinforced by front, rear and intermediate stiffeners with provision of rock breakers. 4mm thick steel plate reinforced by front, rear and intermediate stiffeners with provision of rock breakers. 4mm thick steel plate reinforced by front, rear and intermediate stiffeners with provision of rock breakers. 4mm thick steel plate reinforced by front, rear and intermediate stiffeners with provision of rock breakers. 4mm thick steel plate reinforced by front, rear and intermediate stiffeners with provision of rock breakers. -
Canopy - Full Coverage to the hoist of adequate strength. Full Coverage to the hoist of adequate strength. Full Coverage to the hoist of adequate strength. Full Coverage to the hoist of adequate strength. Full Coverage to the hoist of adequate strength. -
Floor -
  • 5mm thick steel plate reinforced by the cross bearers with body.
  • The floor plate is reinforced by 5 Nos. 32 x 32 sq. bar.
  • They assist in softening the effect of heavy rocks on the floor.
  • Hence increasing life of the body.
  • 6mm thick steel plate reinforced by the cross bearers with body.
  • The floor plate is reinforced by 5 Nos. 32 x 32 sq. bar.
  • They assist in softening the effect of heavy rocks on the floor.
  • Hence increasing life of the body.
  • 6mm thick steel plate reinforced by the cross bearers with body.
  • The floor plate is reinforced by 5 Nos. 32 x 32 sq. bar.
  • They assist in softening the effect of heavy rocks on the floor.
  • Hence increasing life of the body.
  • 6mm thick steel plate reinforced by the cross bearers with body.
  • The floor plate is reinforced by 5 Nos. 32 x 32 sq. bar.
  • They assist in softening the effect of heavy rocks on the floor.
  • Hence increasing life of the body.
  • 6mm thick steel plate reinforced by the cross bearers with body.
  • The floor plate is reinforced by 5 Nos. 32 x 32 sq. bar.
  • They assist in softening the effect of heavy rocks on the floor.
  • Hence increasing life of the body.
 -
Tail Door - 4mm thick steel, reinforced with intermediate stiffeners. 4mm thick steel, reinforced with intermediate stiffeners. 4mm thick steel, reinforced with intermediate stiffeners. 4mm thick steel, reinforced with intermediate stiffeners. 4mm thick steel, reinforced with intermediate stiffeners. -
Hoist - HYVA Make Cylinder - FC 110 N11H297288 or equivalent, oil tank. Air control valve, necessary hoses and fittings, body clamp. HYVA Make Cylinder - FC 149 P01H023418 or equivalent, oil tank. Air control valve, necessary hoses and fittings, body clamp. Wipro Make Cylinder - TCO 188 K2HT2474 or equivalent, oil tank. Air control valve, necessary hoses and fittings, body clamp. HYVA Make Cylinder - FE 129 P03H106428 or equivalent, oil tank. Air control valve, necessary hoses and fittings, body clamp. HYVA Make FE 149 Cylinder - P02H037308 or equivalent, oil tank. Air control valve, necessary hoses and fittings, body clamp. -
Other Features - Ladder Pipe, Mud Guard, Mud Flap, Tail Lamp Guards. Ladder Pipe, Mud Guard, Mud Flap, Tail Lamp Guards. Ladder Pipe, Mud Guard, Mud Flap, Tail Lamp Guards. Ladder Pipe, Mud Guard, Mud Flap, Tail Lamp Guards. Ladder Pipe, Mud Guard, Mud Flap, Tail Lamp Guards. -
Painting - Painted with one coat of zinc chromate primer and two coats of quick drying enamel paint of costumer choice. Painted with one coat of zinc chromate primer and two coats of quick drying enamel paint of costumer choice. Painted with one coat of zinc chromate primer and two coats of quick drying enamel paint of costumer choice. Painted with one coat of zinc chromate primer and two coats of quick drying enamel paint of costumer choice. Painted with one coat of zinc chromate primer and two coats of quick drying enamel paint of costumer choice. -

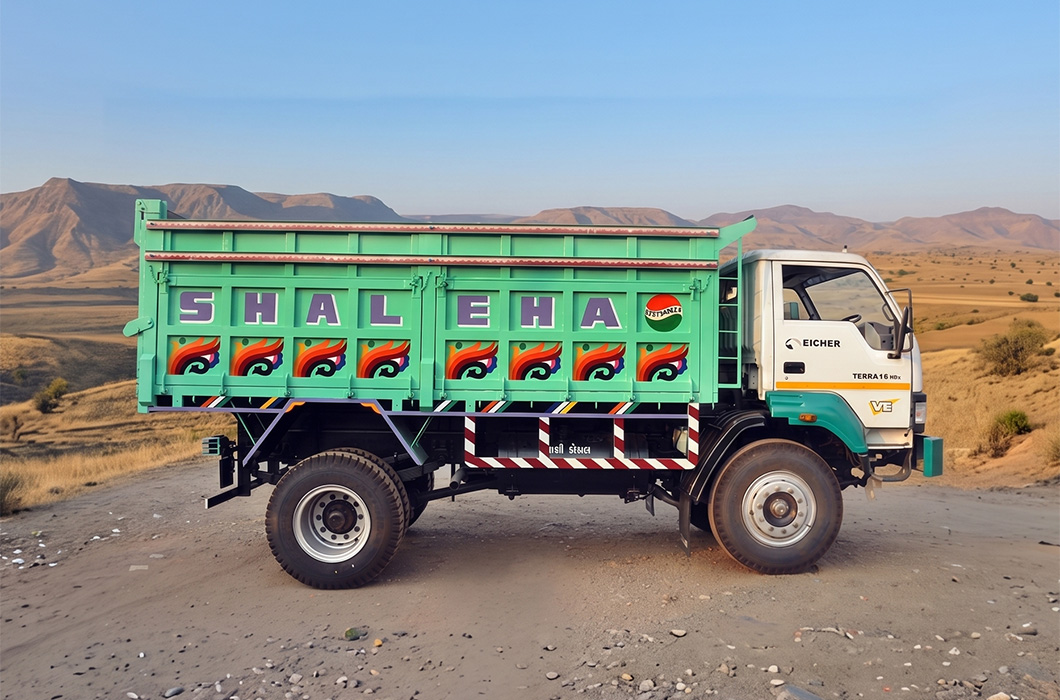

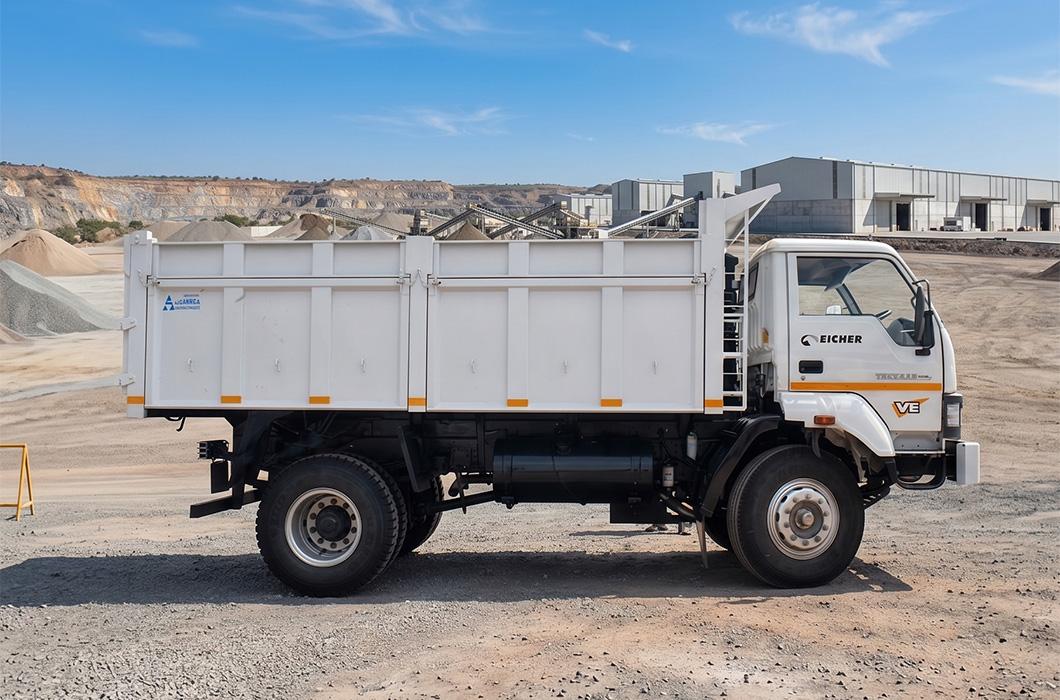

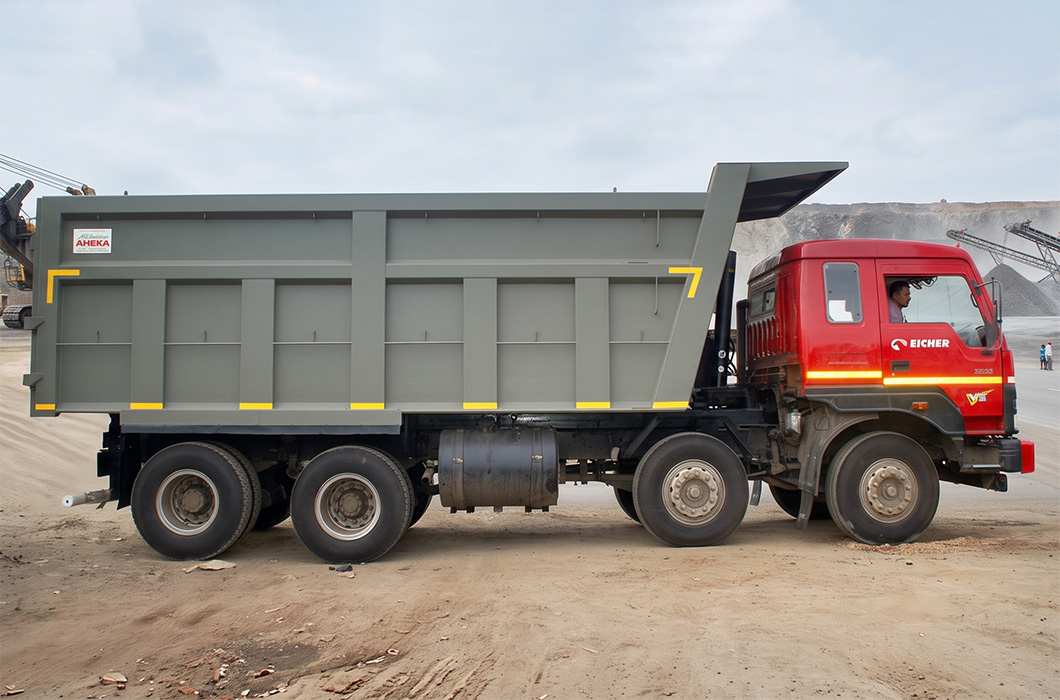

Eicher Tipper Body Solution

Eicher 35-31 4 Brass Body

Eicher Tipper Body Solution

Standard 4 Brass Dumper Eicher Tera-16

Eicher Tipper Body Solution

25cm Eicher 3531 Front End

Vehicle Model
Items Eicher 35-31 4 Brass Body Standard 4 Brass Dumper Eicher Tera-16 25cm Eicher 3531 Front End
Dimension of Body 4830 x 2250 x 1170 - -

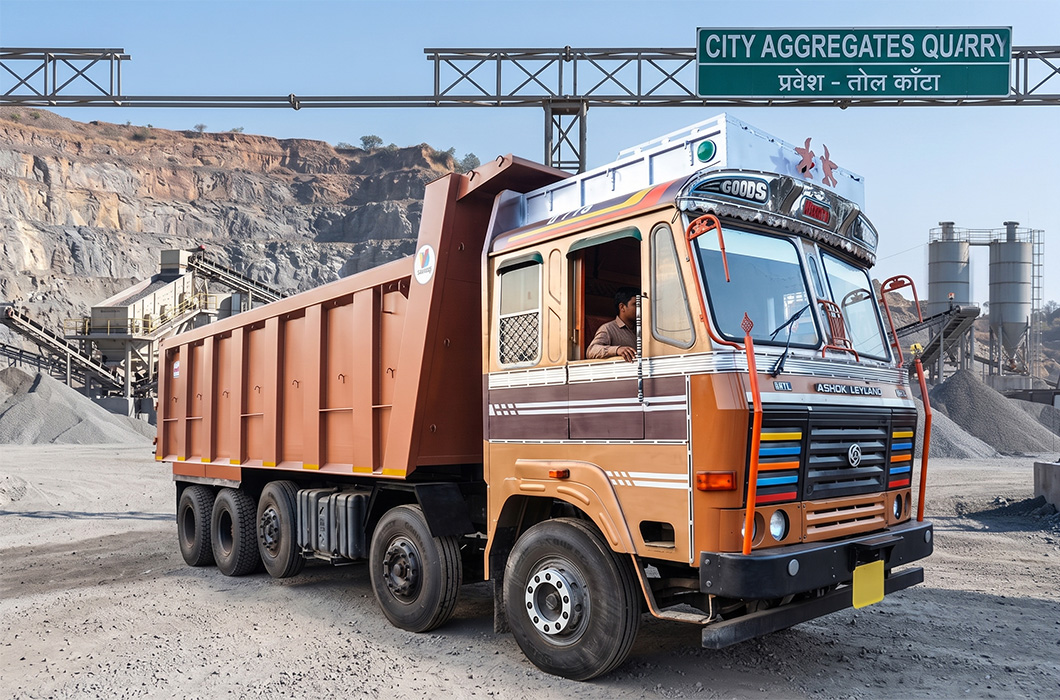

Ashok Leyland Tipper Body Solution

Ashok Leyland 3718 Front End

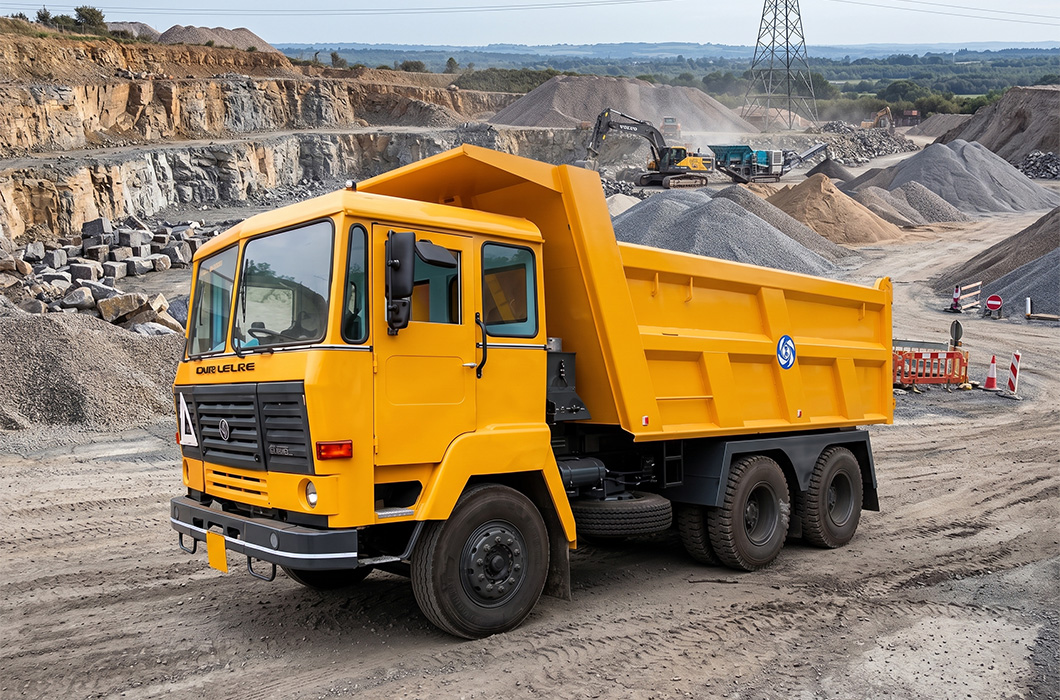

Ashok Leyland Tipper Body Solution

Ashok Leyland 14cm Front End

Vehicle Model
Items Ashok Leyland 3718 Front End Ashok Leyland 14cm Front End
Volumetric Capacity 28 cm -
Overall Dimension of Body 7200 x 2275 x 1980 -
Tipping Angle 110 Degree -
Carrying Material Stone -
Side Panels 4mm thick steel plate reinforced by front, rear and intermediate stiffeners with provision of rock breakers. -
Canopy Full Coverage to the hoist of adequate strength. -
Floor
  • 6 mm thick steel plate reinforced by the cross bearers with body.
  • The floor plate is reinforced by 5 Nos. 32 x 32 sq. bar.
  • They assist in softening the effect of heavy rocks on the floor.
  • Hence increasing life of the body.
 -
Tail Door 4 mm thick steel, reinforced with intermediate stiffeners. -
Hoist HYVA Make Cylinder - FC 169 P01H023418 or equivalent, oil tank. Air control valve, necessary hoses and fittings, body clamp. -
Other Features Ladder Pipe, Mud Guard, Mud Flap, Tail Lamp Guards. -
Painting Painted with one coat of zinc chromate primer and two coats of quick drying enamel paint of costumer choice. -

High Strength

Premium-grade steel for maximum durability.

Precision Engineering

Advanced design and manufacturing for performance.

Corrosion Resistant

Protective finishing for longer service life.

After-Sales Support

Reliable service and support across India.
